BioFusion S500/S300/DS100 Infusion pump/syringe pump/infusion information collection system trolley-RS008-08726
Product detailed information
BioFusion S500/S300/DS100 Infusion pump/syringe pump/infusion information collection system trolley-RS008-08726 Specification
- Height range：1700~1800mm
- Injection pump spacing：150mm
- Power cord spacing：150mm
- Overall load-bearing of the cart：20Kg
- Bearing the load of the infusion rod：4kg (single hook 2kg)
- Single fixed clip load：3kg
Recommended accessories
Muti-function Medical Clamp Specification
- Standard installation size：30*30mm ， 25mm
- Application： Infusion pump, patient monitor, blood pressure monitor
- Main advantage：Muti-function , support both pole and channel mount.
- Equipment will not rotate when mount to channel.
Muti-function Medical Clamp-Computer monitor installation-（Circle, rectangle, diamond） Specification
- Load Max：8KG

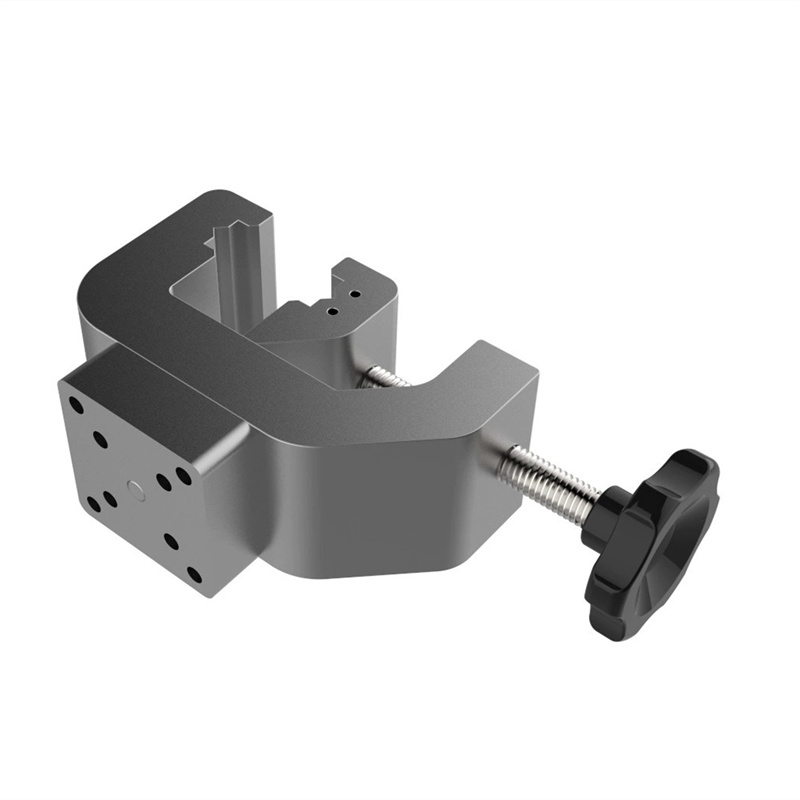

Muti-function Medical Clamp（Circle, rectangle, diamond） Specification
- Standard installation size：17*17mm/30*30mm
- Application： Infusion pump, patient monitor, blood pressure monitor
- Main advantage：Muti-function , support both pole and channel mount.
- Once mounted to the pole, the device can rotate the angle according to the needs of the application

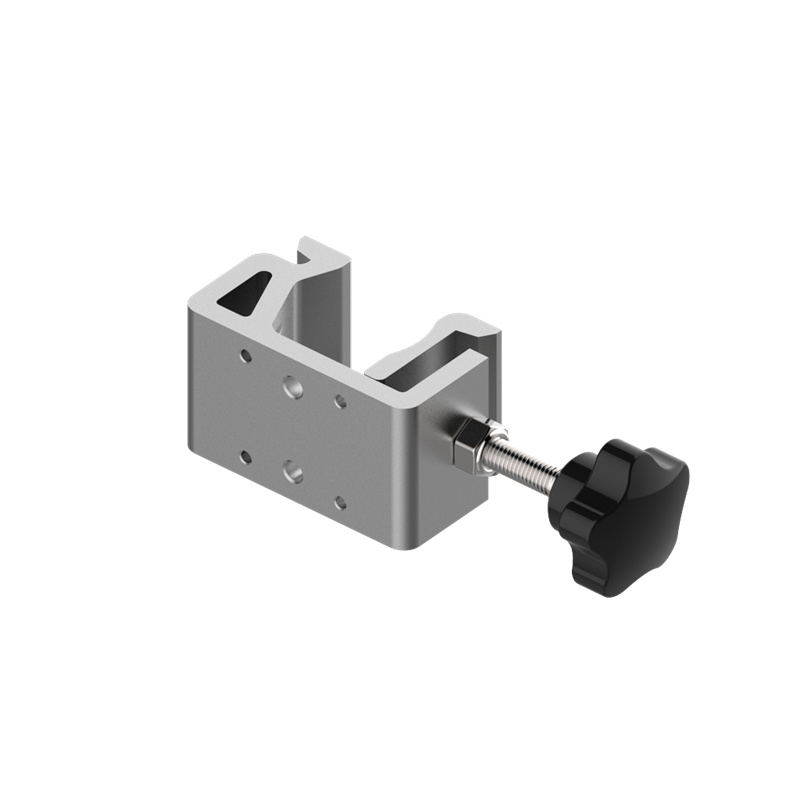

Muti-function Medical Clamp（Circle, rectangle, diamond）-CL001-08875 Specification
- Application： Infusion pump, patient monitor, blood pressure monitor
- Main advantage：Muti-function , support both pole and channel mount.
Create Datasheet
Select options on the right and create a customized datasheet.
Basic Information
| Model | RS008-08726 | Name | 6 + 2 Channel Workstation cart |
|---|---|---|---|
| Infusion pump | 2-Channel | Injection pump | 6-Channel |
| Height range | 1700~1800mm | Injection pump spacing | 150mm |
| Power cord spacing | 150mm | Overall load-bearing of the cart | 20Kg |
| Bearing the load of the infusion rod | 4kg (single hook 2kg) | Single fixed clip load | 3kg |
| Enter the power supply | 100-240V ~ 50/60Hz 2.40-0.84A | Output the power supply | 100-240V ~ 50/60Hz 0.40-0.14A |
